Trailer Project Photos

1975 Lionel Tent Trailer

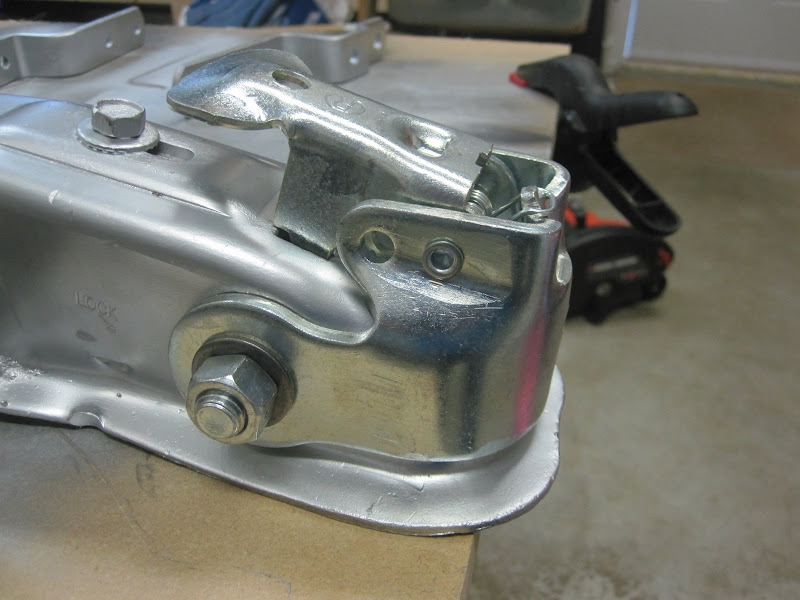

The new locking assembly. Very easy to install and ready go for another 30 years.
The new locking assembly. Very easy to install and ready go for another 30 years.

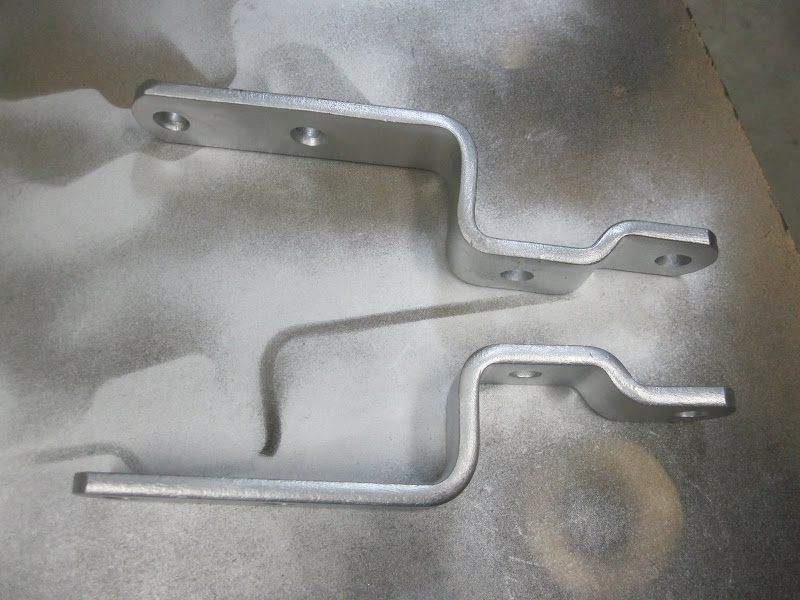

 The rear actuator arms. I haven't re-painted the front ones, but they are only about 3" long and straight.
The rear actuator arms. I haven't re-painted the front ones, but they are only about 3" long and straight.

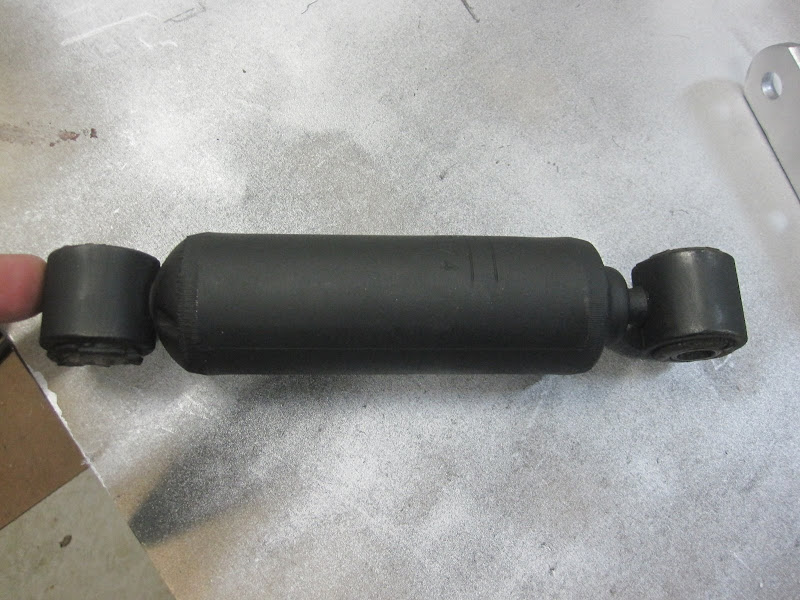

Used shock, re-painted. Luckily I was able to find one that is still in good working order.
Used shock, re-painted. Luckily I was able to find one that is still in good working order.

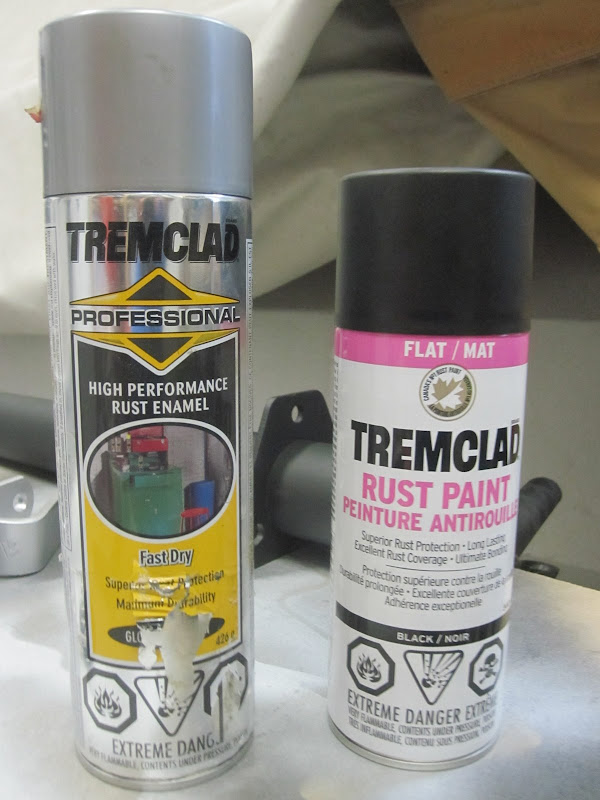

 These are the paints I've used on the hitch assembly. Most parts got 3 - 5 coats of paint while some of the smaller parts only received two.
These are the paints I've used on the hitch assembly. Most parts got 3 – 5 coats of paint while some of the smaller parts only received two.

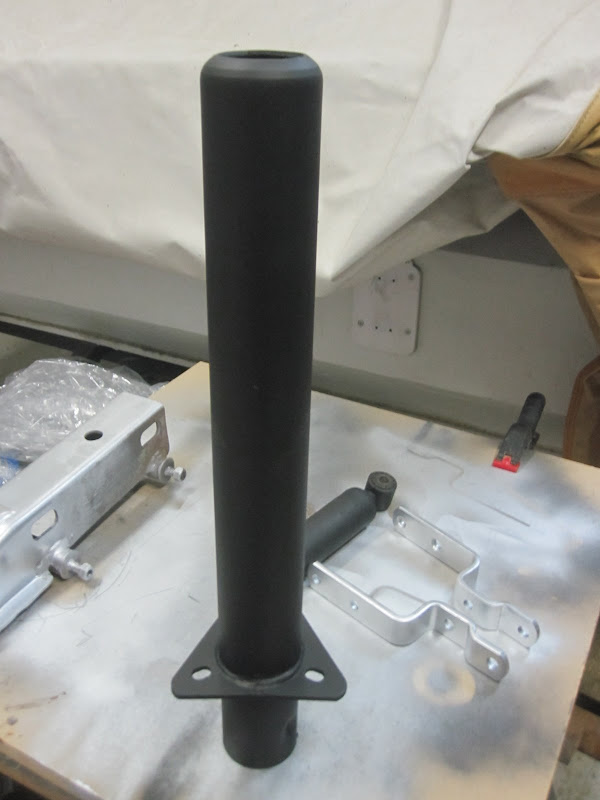

Re-painted hitch jack housing.
Re-painted hitch jack housing.

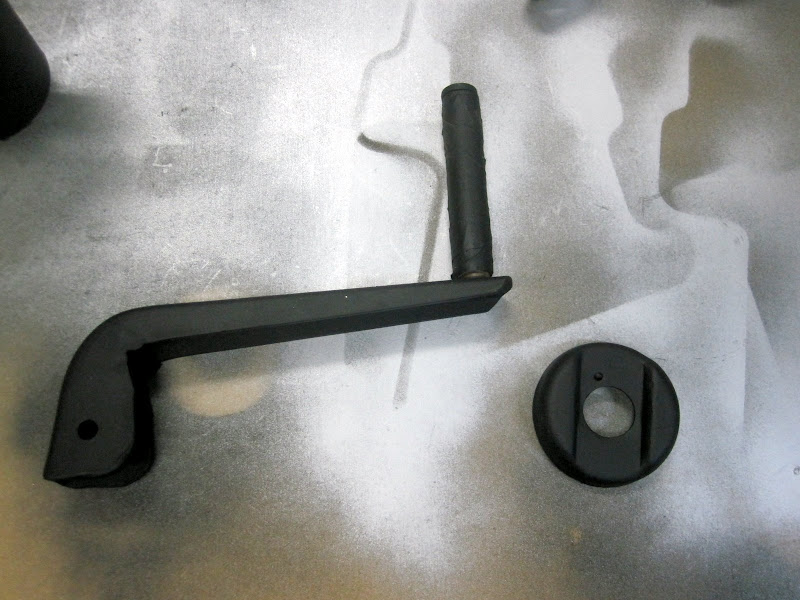

 Hitch jack handle and cap.
Hitch jack handle and cap.

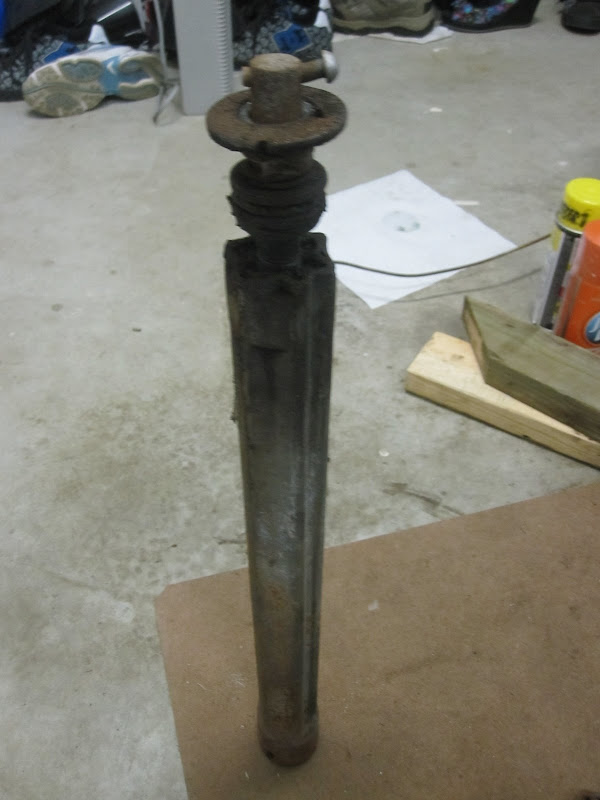

The insides of the hitch jack. I'll give this a quick clean-up and lube the threads and bearings before reassembly.
The insides of the hitch jack. I'll give this a quick clean-up and lube the threads and bearings before reassembly.

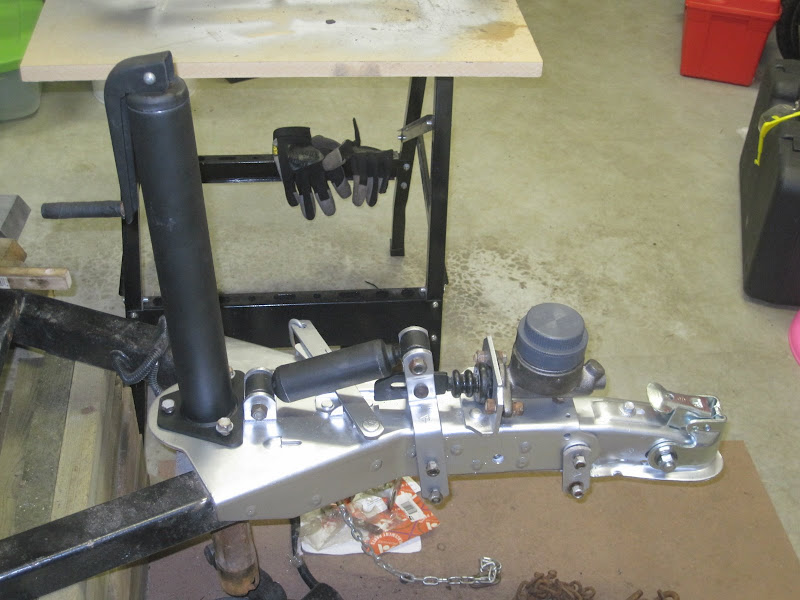

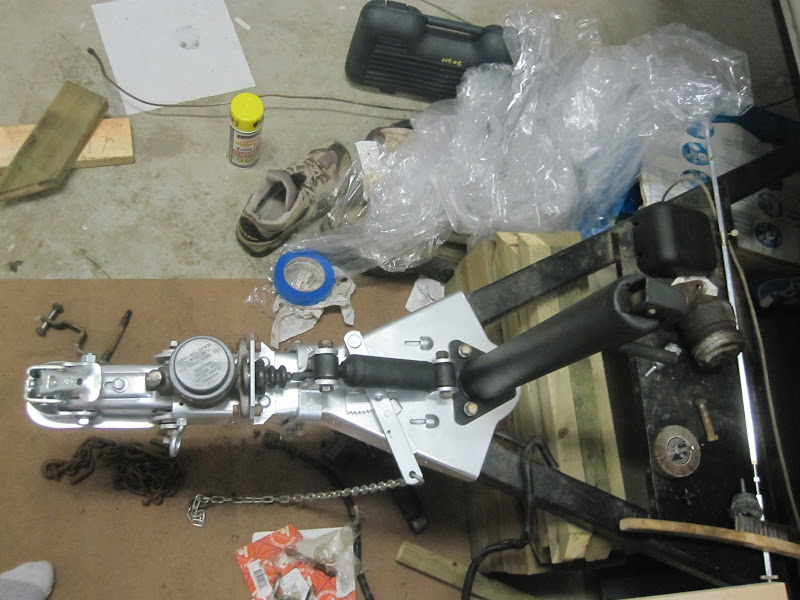

 Hitch assembly test fit.
Hitch assembly test fit.

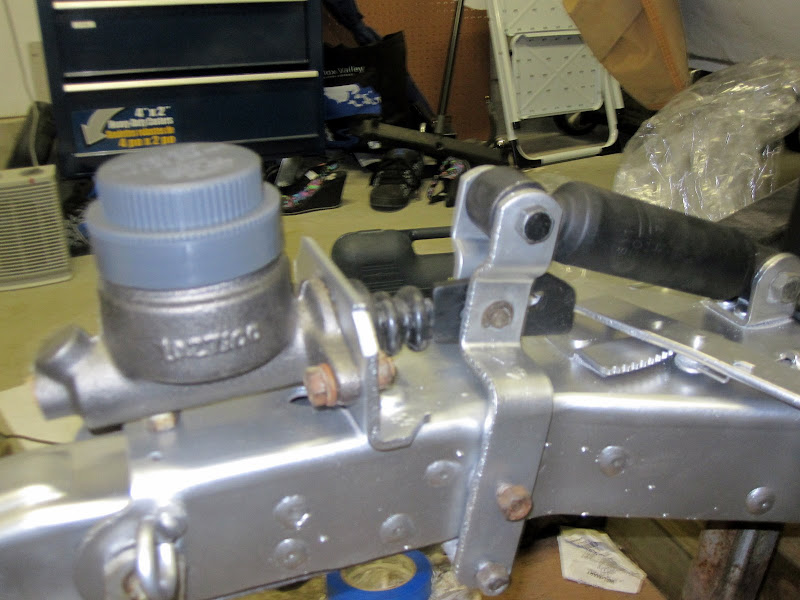

Brake actuator assembly.
Brake actuator assembly.
